Front double stud fitting
ICONES-weight
123 grs

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front) > 50 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Lever

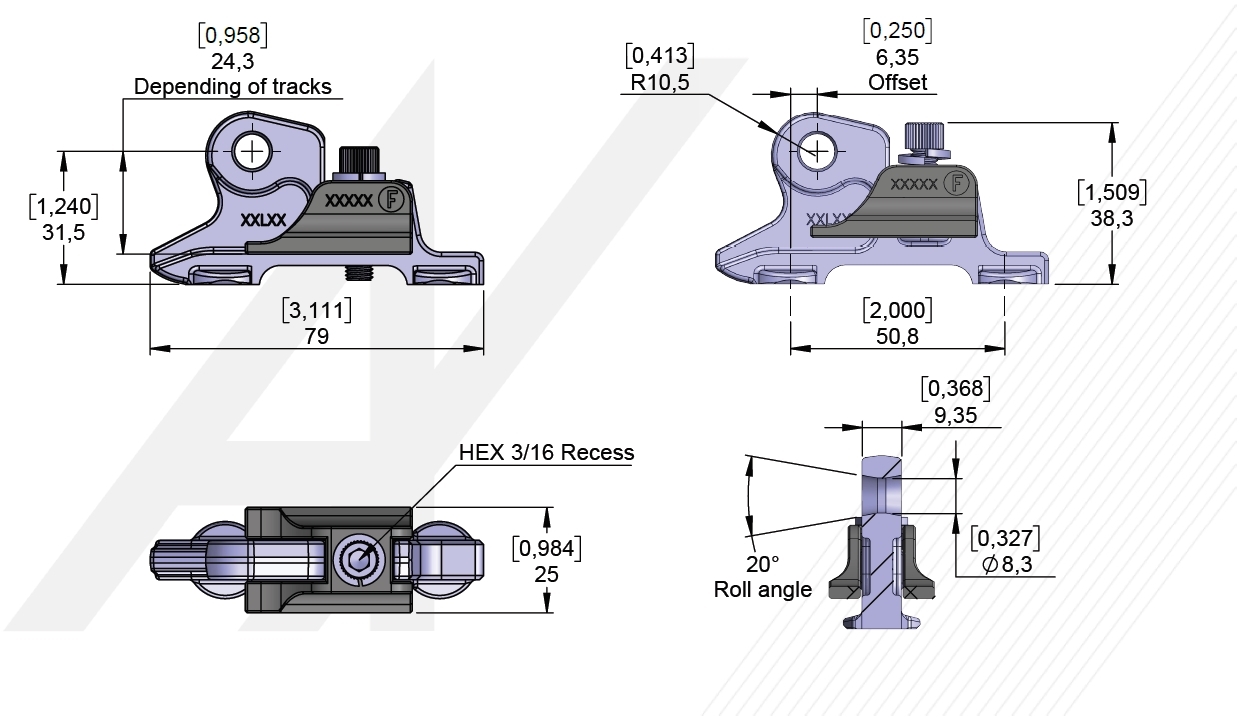

Dimensions

[ units in inch ]

Technical data

_ICONES-nocheck-vide
Safety indicator
_ICONES-nocheck-vide
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw
