50T3R1002

50T 3R1 002

ICONES-prod-2
Rear triple stud fitting
ICONES-weight
144 grs
50T3R1002-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

Dimensions

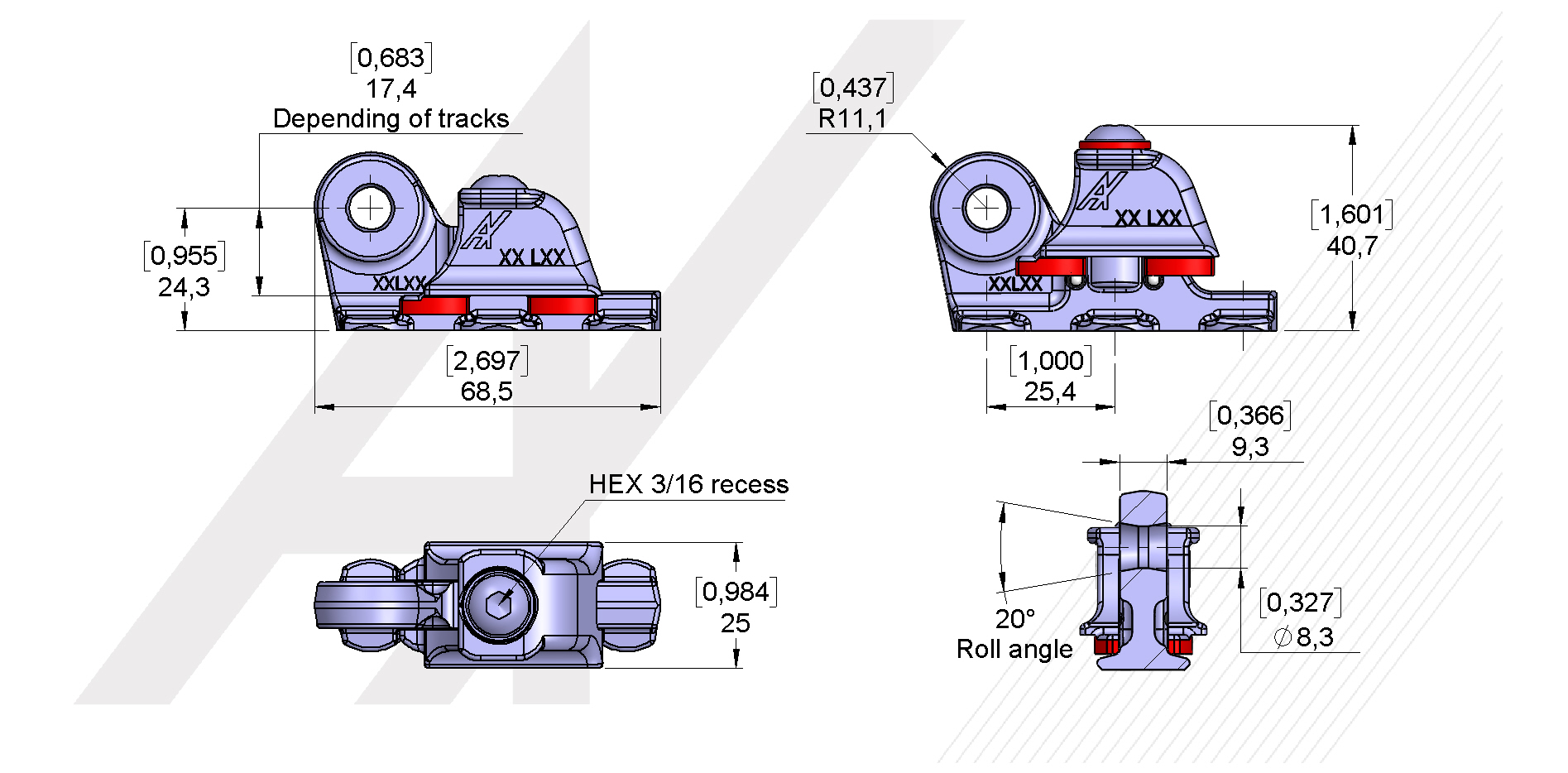

Data sheet 50T3R1002-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-nocheck-vide
Offset
_ICONES-check
Captive screw
