50T 3R1 004

ICONES-prod-2
Rear triple stud fitting
ICONES-weight
184 grs

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front) > TBD

ICONES-aircrafts

Aircrafts

Airbus
Boeing
Tupolev
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B777

_ICONES-check

Other

Components

Material

Treatment

Body

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

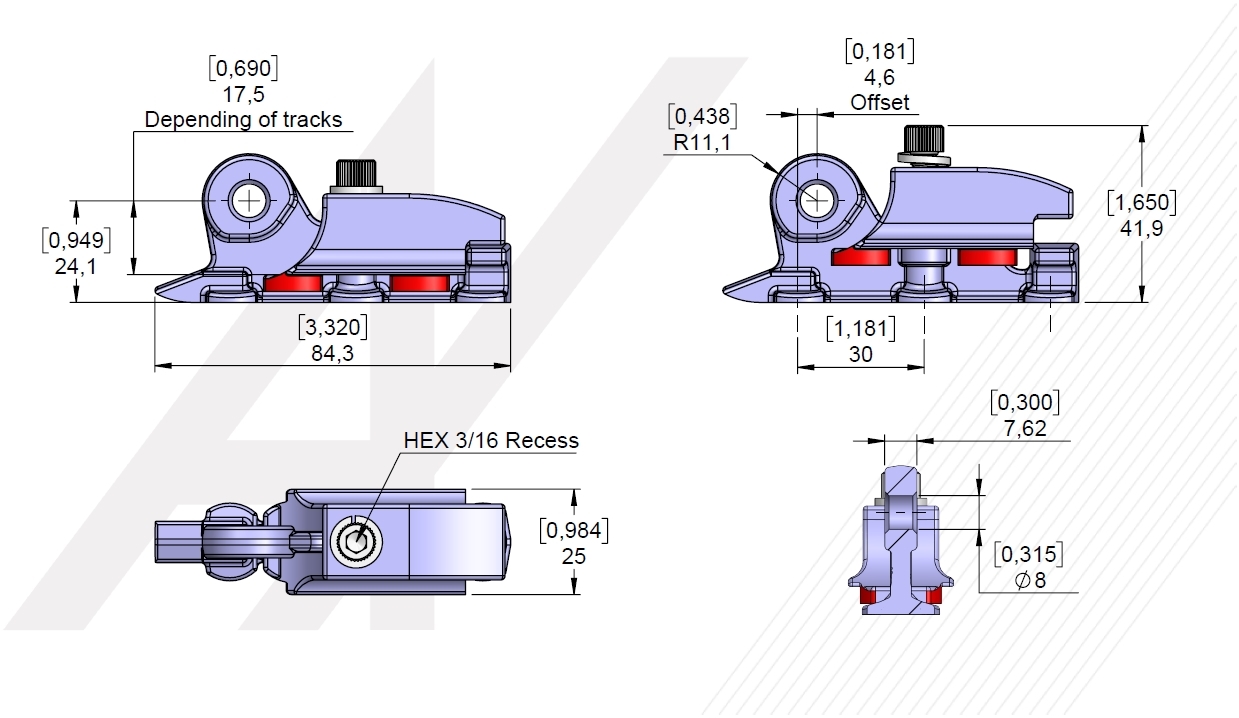

Dimensions

[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw
