Clawing

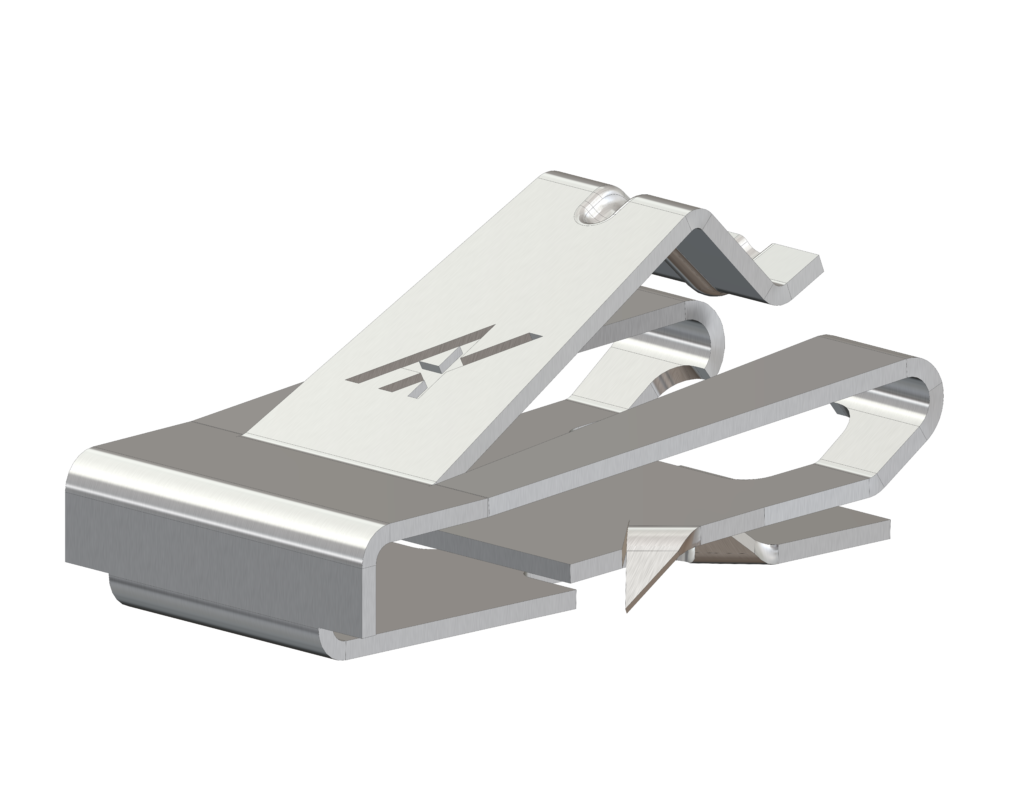

150130251_view_type_02

150 130 XXX

ICONES-prod-2
Claw Clip Butterfly®
ICONES-weight
1,0 grs
150130251_view_type_02

Main Features

Technical data

Blind assembly in the window
Function guaranteed up to 6 disassemblies
Installation load on clip support less than 25N with a thickness from 1.50 to 2.00 mm
Average assembly load in ABS (polypropylene) window 40N (+/-15)
Average disassembly load in ABS (polypropylene) window 80N (+/-20)

Characteristics

Material

Treatments

Clip

Steel XC68

Quenched and tempered

XXX = 251 for Grey Delta Protekt KL100

XXX = 253 for Delta Protekt KL100 + Black Delta Seal

Other treatments avalaible on request

Dimensions

Data_Sheet_150130
[ units in inch ]

150130XXX Read More »

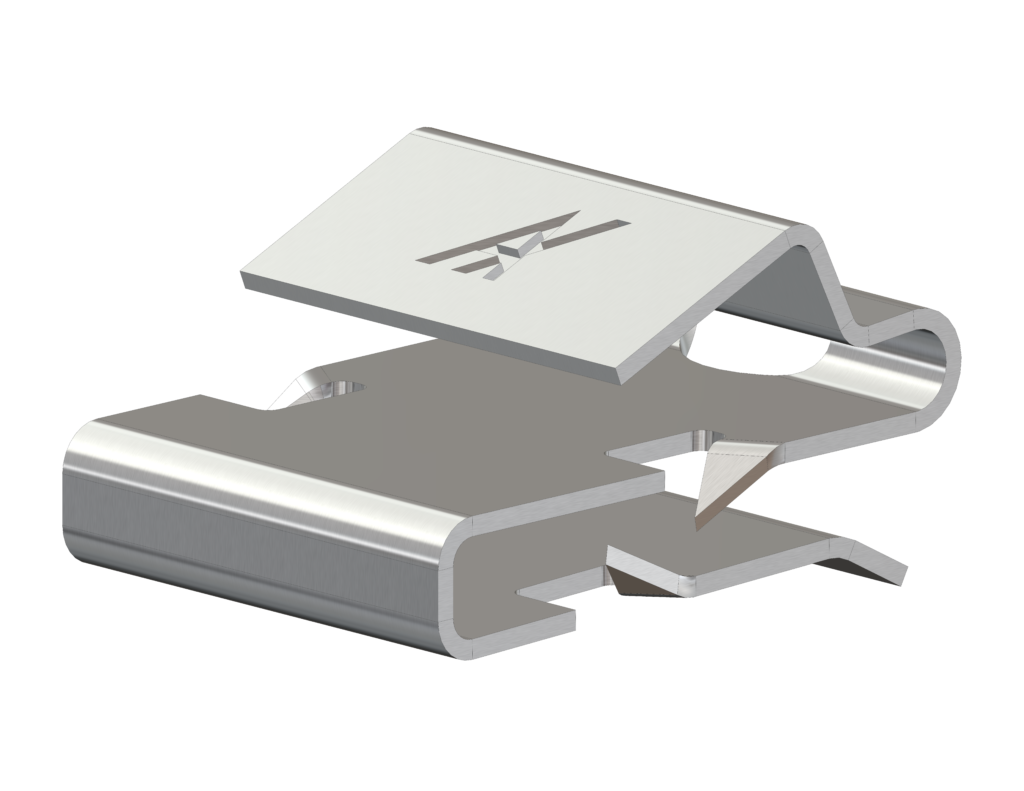

150110251_view_type_01

150 110 251

ICONES-prod-2
Claw Clip Butterfly®
ICONES-weight
1,2 grs
150110251_view_type_01

Main Features

Technical data

Blind assembly in the window
Function guaranteed up to 6 disassemblies
Installation load on clip support less than 20N with a thickness from 1.50 to 2.00 mm
Average assembly load in ABS (polypropylene) window less than 30N
Average disassembly load to be defined according to environment and material

Characteristics

Material

Treatments

Clip

Steel XC68

Quenched and tempered

Grey Delta Protekt KL100

Other treatments avalaible on request

Dimensions

Data_Sheet_150110
[ units in inch ]

150110251 Read More »

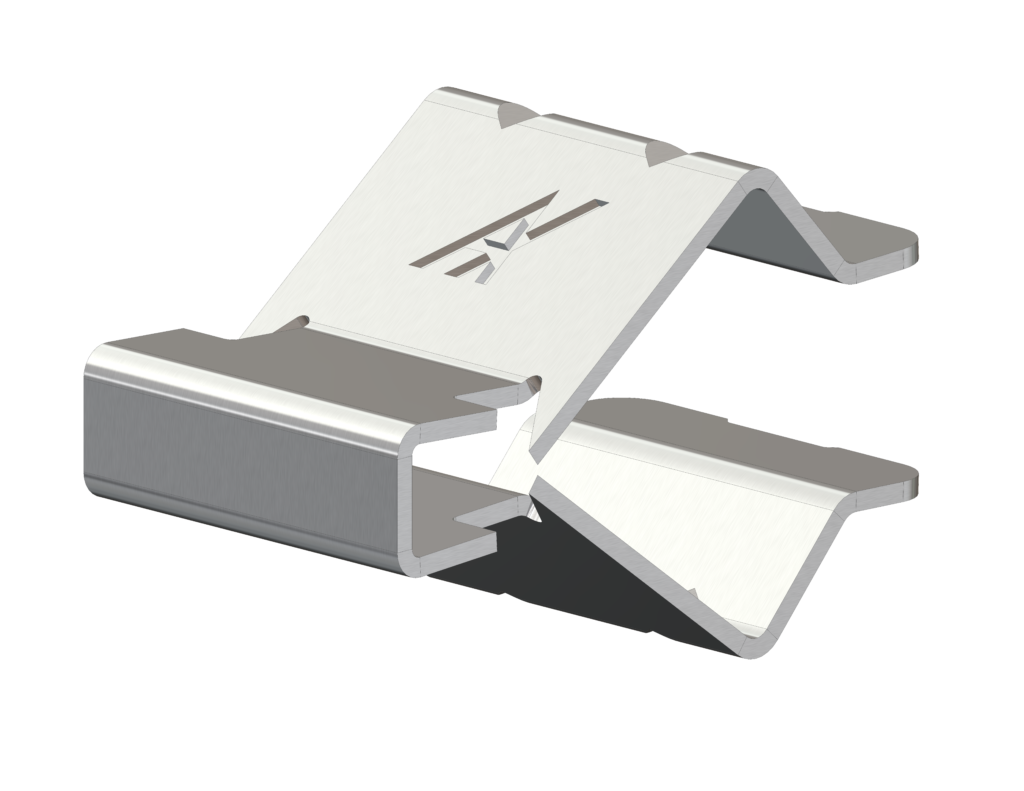

150093251_view_type_02

150 093 251

ICONES-prod-2
Claw Clip Butterfly®
ICONES-weight
0,9 grs
150093251_view_type_02

Main Features

Technical data

Blind assembly in the window
Function guaranteed up to 6 disassemblies
Installation load on clip support less than 150N with a thickness from 1.50 to 2.00 mm
Average assembly load in ABS (polypropylene) window 30N (-5 / +10)
Average disassembly load in ABS (polypropylene) window 75N (+/-15)

Characteristics

Material

Treatments

Clip

Steel XC68

Quenched and tempered

Grey Delta Protekt KL100

Other treatments avalaible on request

Dimensions

Data_Sheet_150093
[ units in inch ]

150093251 Read More »

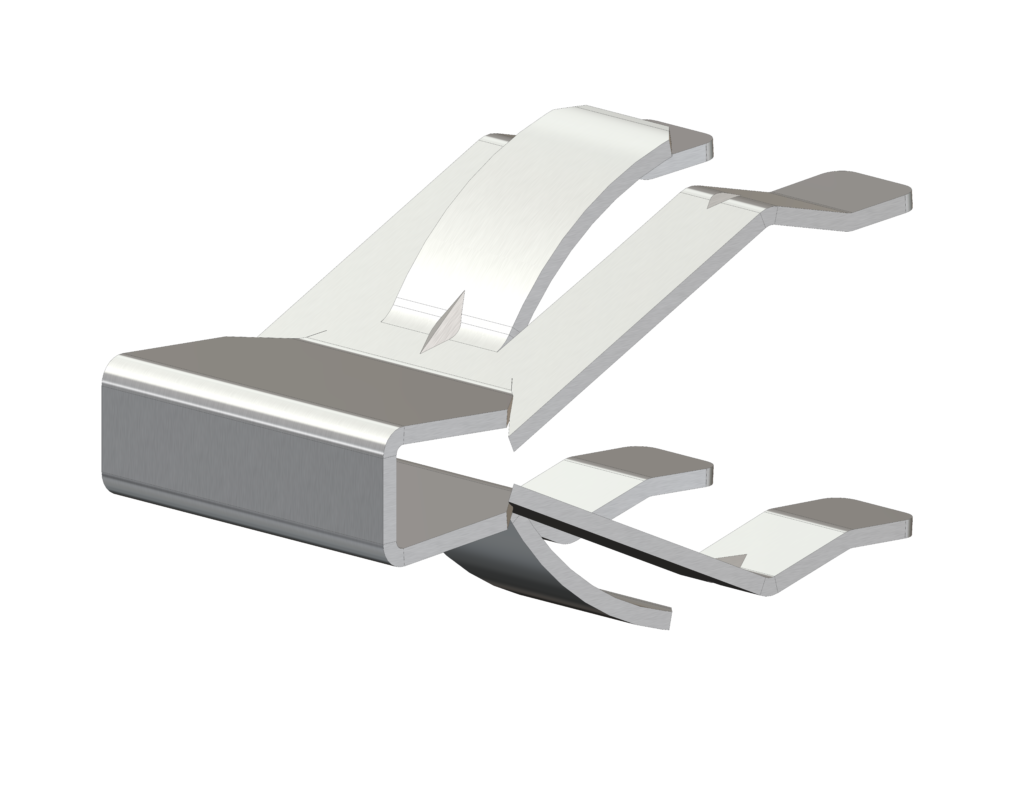

150092251_view_type_03

150 092 251

ICONES-prod-2
Claw Clip Butterfly®
ICONES-weight
0,9 grs
150092251_view_type_03

Main Features

Technical data

Blind assembly in the window
Impossible to disassemble
Installation load on clip support less than 150N with a thickness from 1.50 to 2.00 mm
Average assembly load in ABS (polypropylene) window 55N (+/-10)
Average disassembly load in ABS (polypropylene) window 245N (+/-10)

Characteristics

Material

Treatments

Clip

Steel XC68

Quenched and tempered

Grey Delta Protekt KL100

Other treatments avalaible on request

Dimensions

Data_Sheet_150090
[ units in inch ]

150092251 Read More »

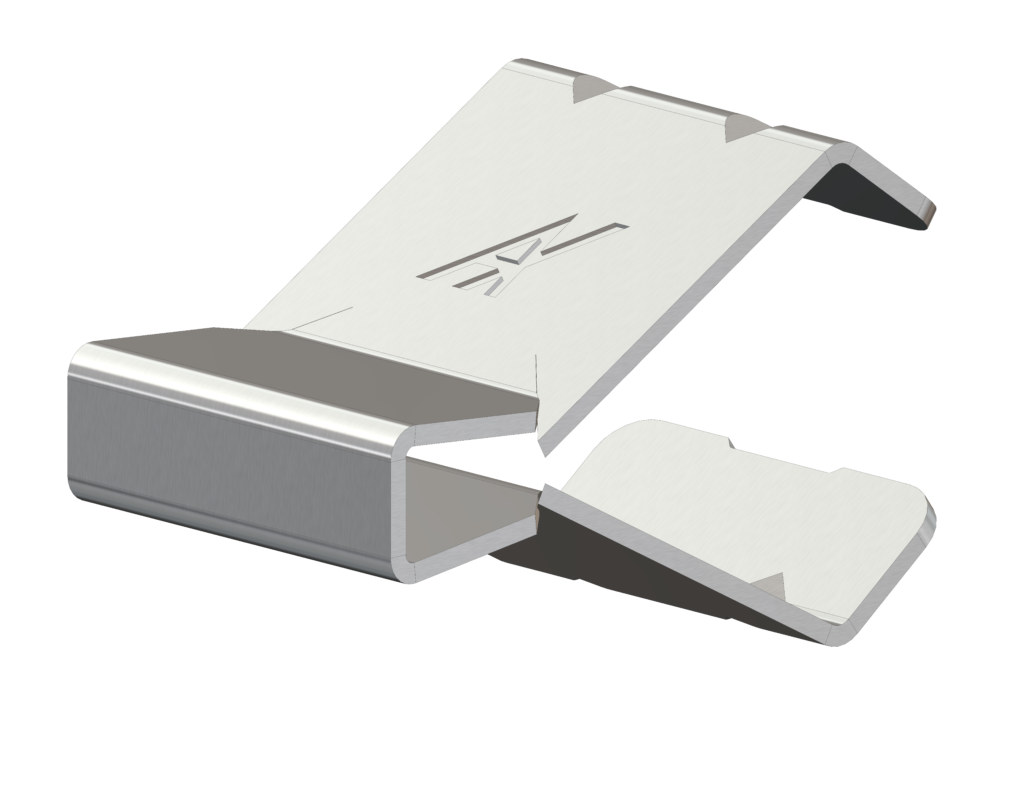

150090251_view_type_01

150 090 251

ICONES-prod-2
Claw Clip Butterfly®
ICONES-weight
0,9 grs
150090251_view_type_01

Main Features

Technical data

Blind assembly in the window
Function guaranteed up to 6 disassemblies
Installation load on clip support less than 150N with a thickness from 1.50 to 2.00 mm
Average assembly load in ABS (polypropylene) window 30N (-5 / +10)
Average disassembly load in ABS (polypropylene) window 75N (+/-15)

Characteristics

Material

Treatments

Clip

Steel XC68

Quenched and tempered

Grey Delta Protekt KL100

Other treatments avalaible on request

Dimensions

Data_Sheet_150090
[ units in inch ]

150090251 Read More »

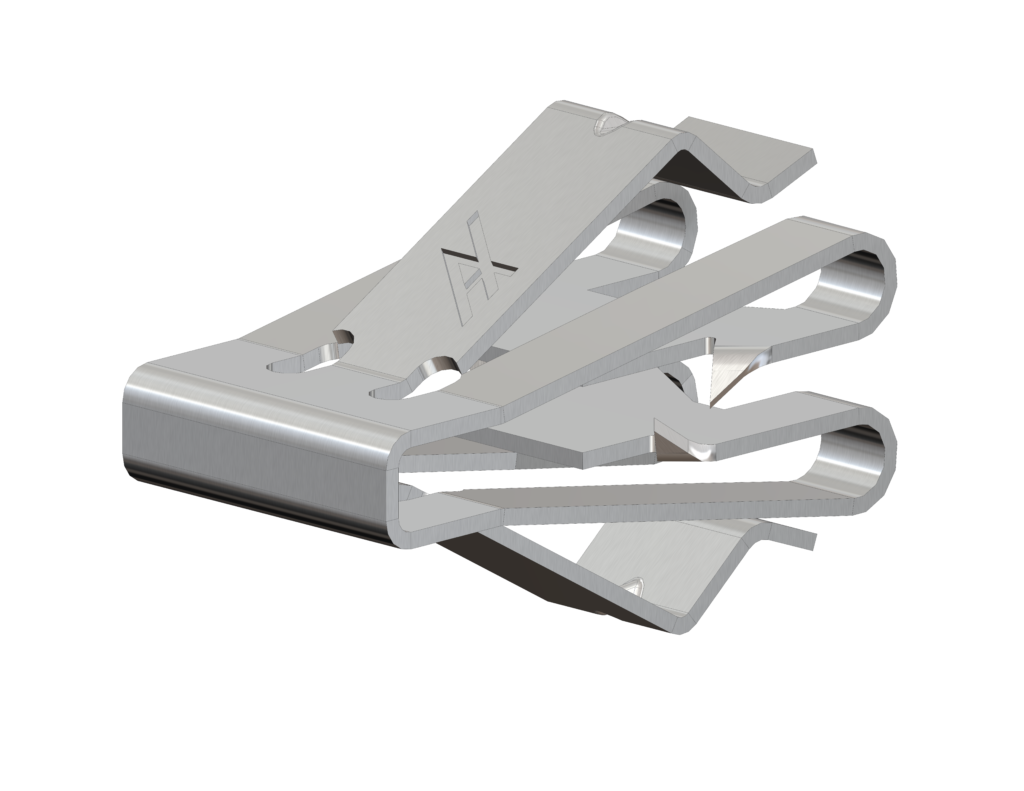

150 011 251

ICONES-prod-2
Claw Clip Butterfly®
ICONES-weight
1,3 grs
150010251_view_type_02

Main Features

Technical data

Blind assembly in the window
Function guaranteed up to 6 disassemblies
Installation load on clip support less than 20N with a thickness from 1.50 to 2.00 mm
Average assembly load in ABS (polypropylene) window 25N (-5 / +10)
Average disassembly load in ABS (polypropylene) window from 35N to 85N max

Characteristics

Material

Treatments

Clip

Steel XC68

Quenched and tempered

Grey Delta Protekt KL100

Other treatments avalaible on request

Dimensions

Data_Sheet_150011
[ units in inch ]

150011251 Read More »

150010251_view_type_02

150 010 XXX

ICONES-prod-2
Claw Clip Butterfly®
ICONES-weight
1,3 grs
150010251_view_type_02

Main Features

Technical data

Blind assembly in the window
Function guaranteed up to 6 disassemblies
Installation load on clip support less than 20N with a thickness from 1.50 to 2.00 mm
Average assembly load in ABS (polypropylene) window 25N (-5 / +10)
Average disassembly load in ABS (polypropylene) window 100N (-20 / +10)

Characteristics

Material

Treatments

Clip

Steel XC68

Quenched and tempered

XXX = 230 for White Zinc

XXX = 251 for Grey Delta Protekt KL100

Other treatments avalaible on request

Dimensions

Data_Sheet_150010
[ units in inch ]

150010XXX Read More »
