505 196 909

ICONES-prod-2

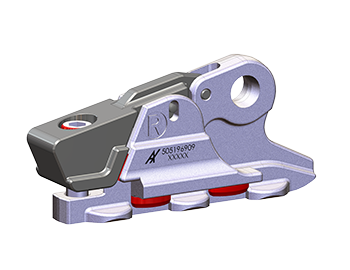

Rear triple stud fitting
ICONES-weight
207 grs
505196909_view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              3
Shear Plunger                 Yes
Fxz (rear) or Fz (front) > 70 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Stainless steel 17-4 Ph per AMS 5355

Zinc Nickel Type II Grade B per AMS 2417

Lever

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

Data Sheet 505196909

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw
