Fittings

E12282-V4_view_type

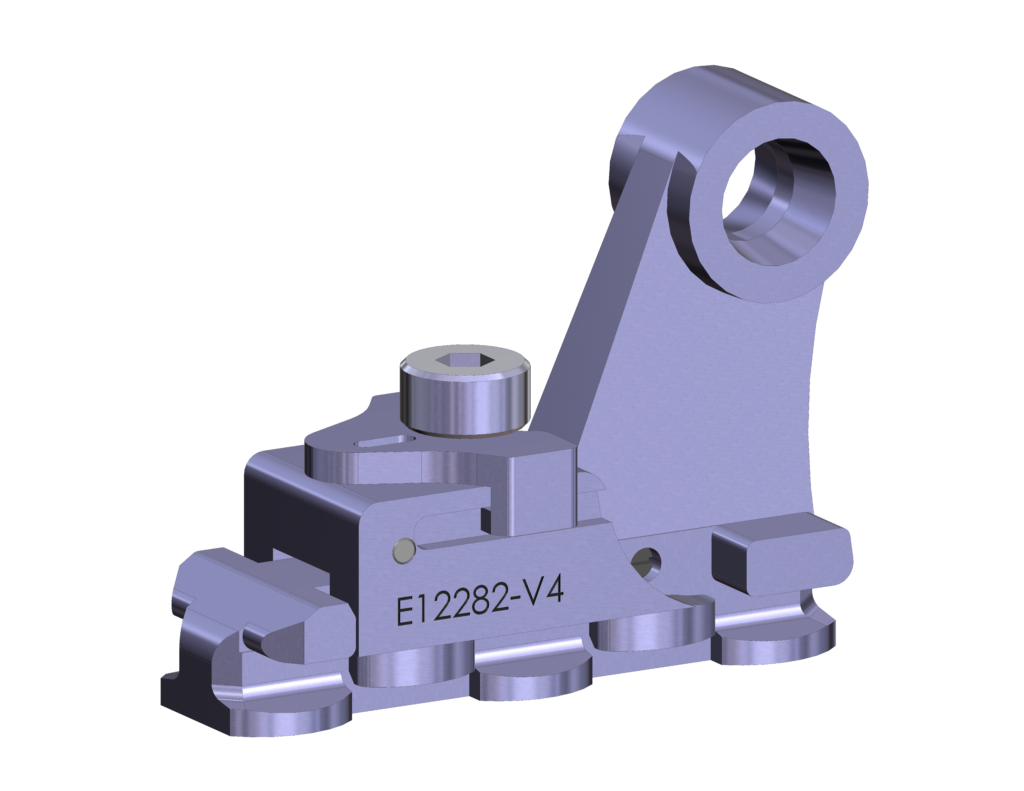

E12282-V4

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
191 grs
E12282-V4_view_type

Features

ICONES-caracs

Characteristics

Fitting class                      Single Move
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front) > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-check

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

–

–

Dimensions

Data Sheet E12282-V4
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-nocheck-vide
Offset
_ICONES-check
Captive screw

E12282-V4 Read More »

E12281-V4_view_type

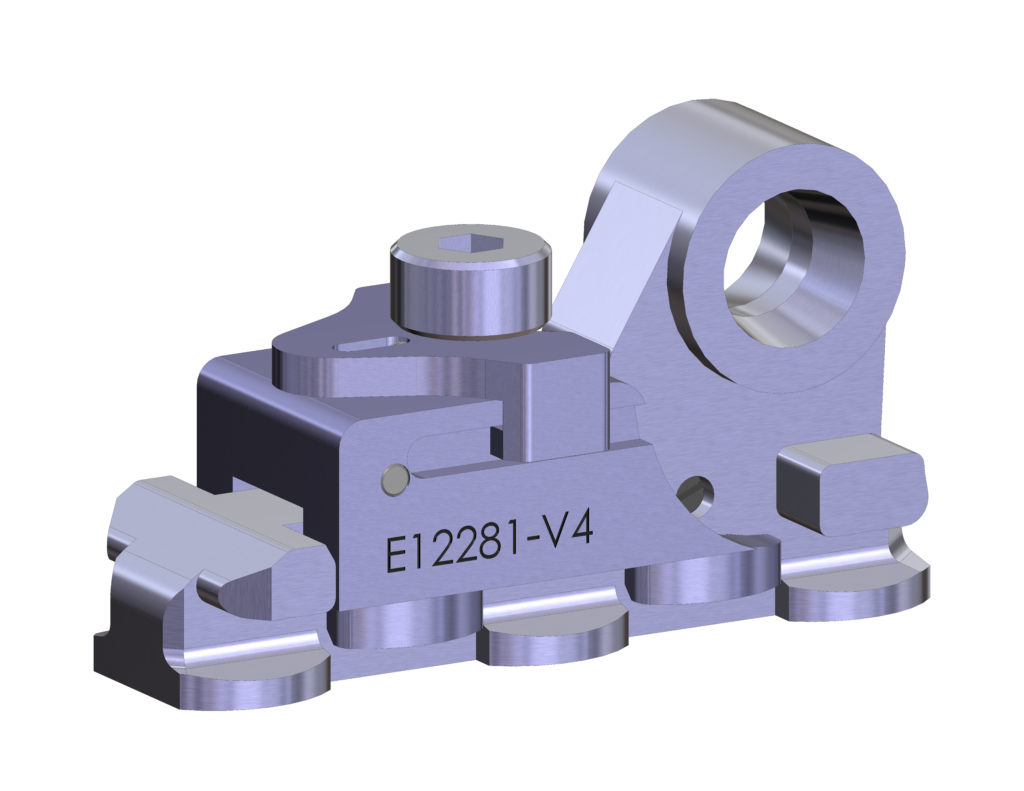

E12281-V4

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
168 grs
E12281-V4_view_type

Features

ICONES-caracs

Characteristics

Fitting class                      Single Move
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front) > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-check

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

–

–

Dimensions

Data Sheet E12281-V4
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

E12281-V4 Read More »

505151909_B-view type2

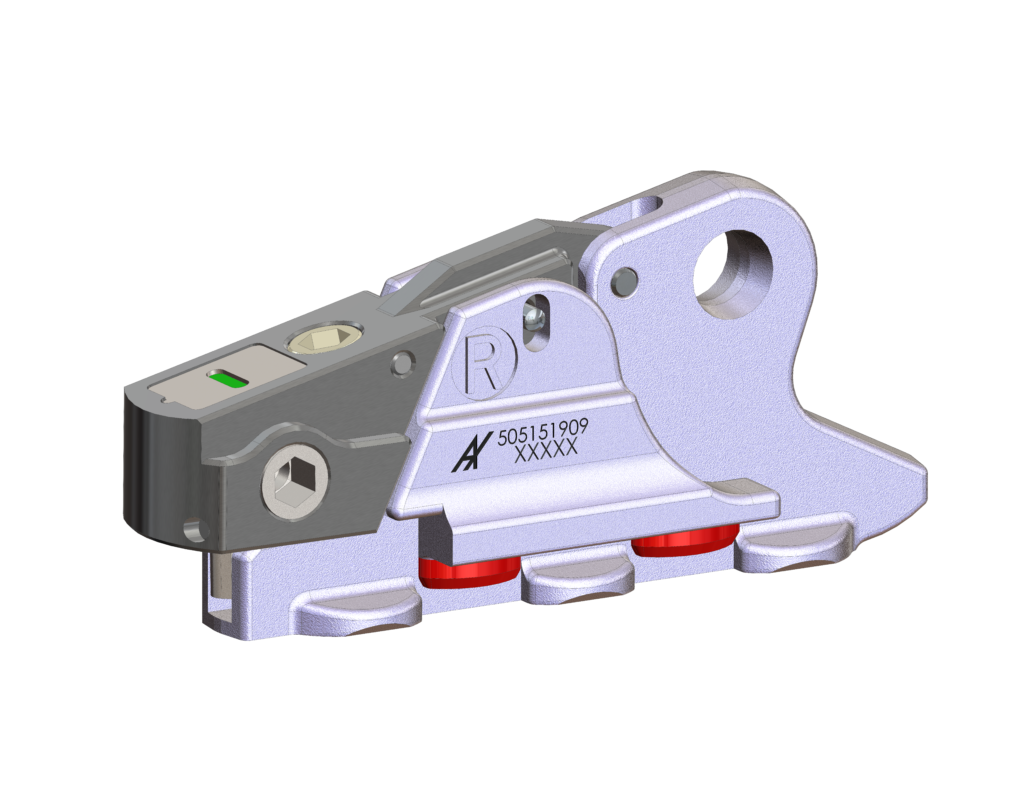

505 151 909

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
225 grs
505151909_B-view type2

Features

ICONES-caracs

Characteristics

Fitting class                       Quick Change
Number of studs              3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > 75 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Lever

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

Data Sheet 505151909
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-check
Green
_ICONES-check
Tool-less
_ICONES-check
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

505151909 Read More »

505143909_F-view type

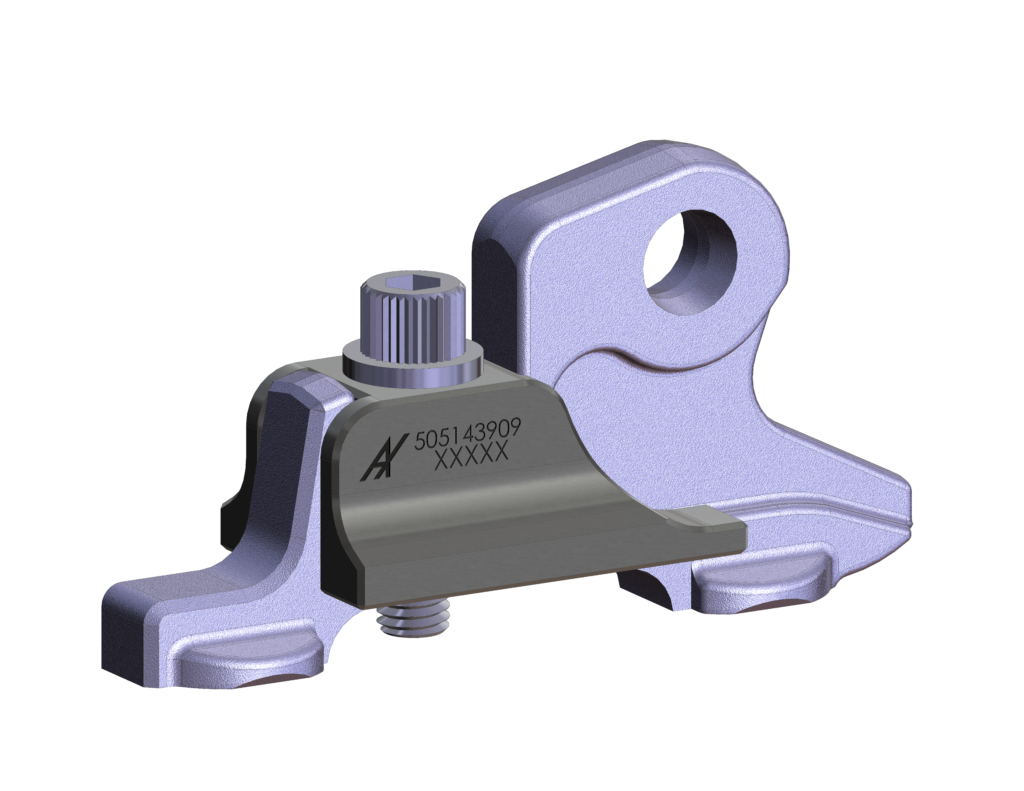

505 143 909

PDF
icone videopng-18
ICONES-prod-2
Front double stud fitting
ICONES-weight
123 grs
505143909_F-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front) > 50 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Lever

–

–

Dimensions

Data Sheet 505143909
[ units in inch ]

Technical data

_ICONES-nocheck-vide
Safety indicator
_ICONES-nocheck-vide
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

505143909 Read More »

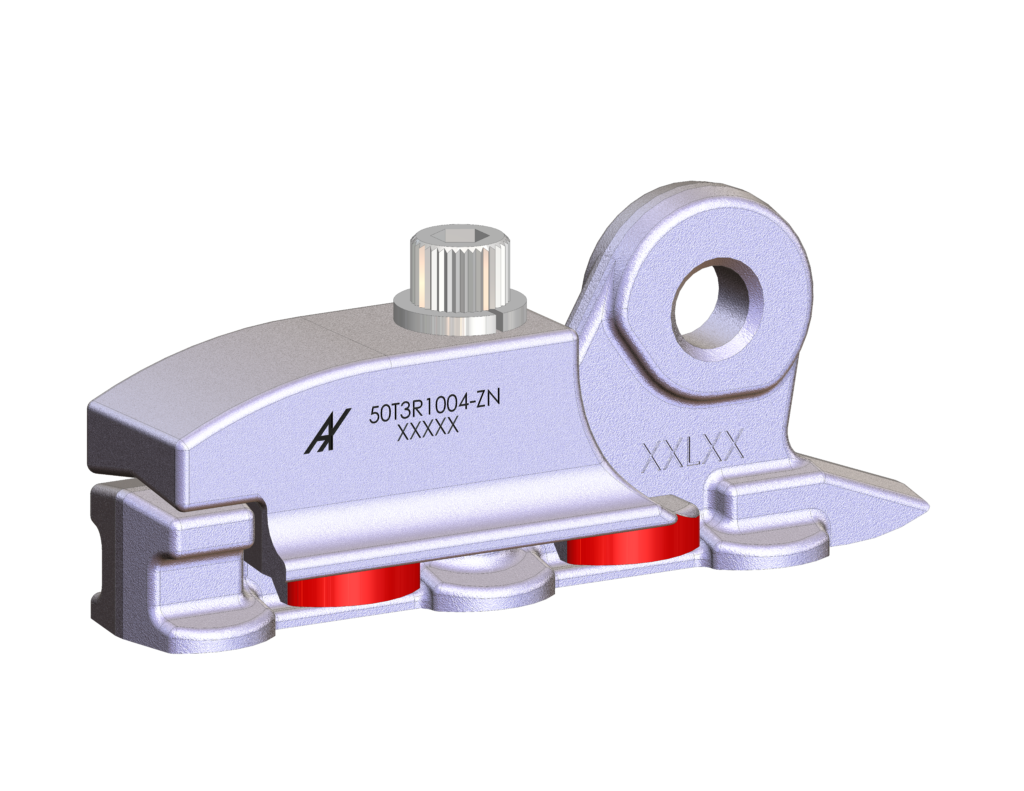

50T3R1004-ZN-view type

50T 3R1 004

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
184 grs
50T3R1004-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > TBD

ICONES-aircrafts

Aircrafts

Airbus
Boeing
Tupolev
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B777

_ICONES-check

Components

Material

Treatment

Body

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

–

–

Dimensions

[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

50T3R1004 Read More »

50T3R1001-ZN-view type

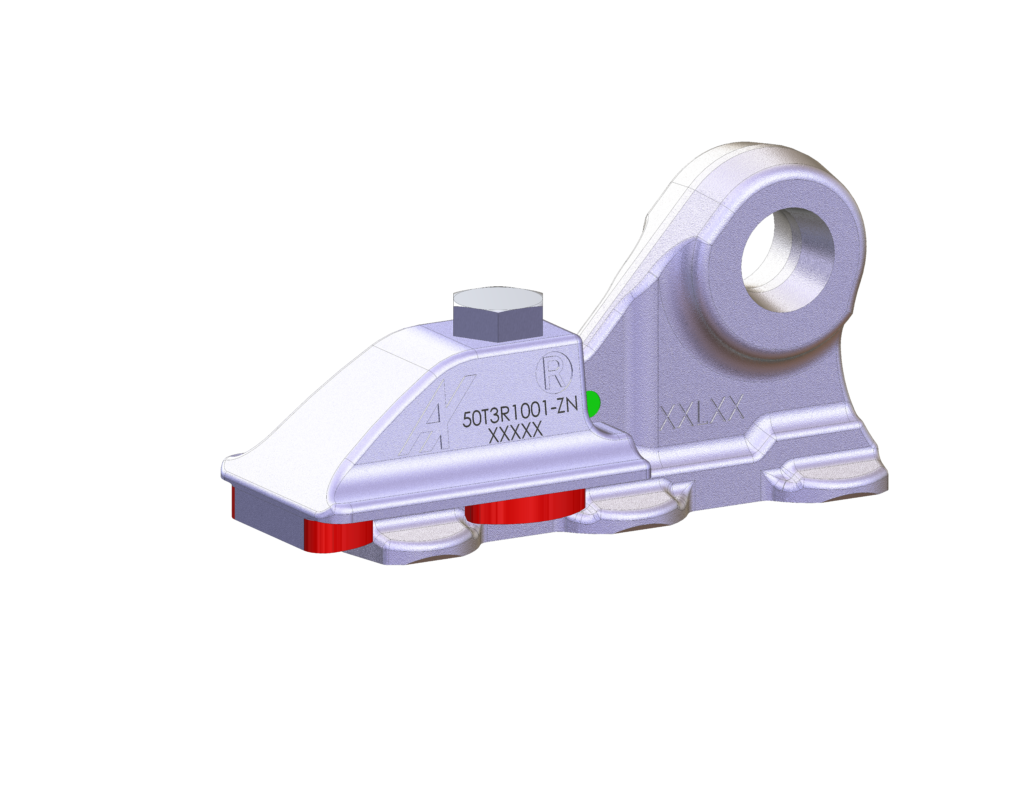

50T 3R1 001

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
137 grs
50T3R1001-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front) > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

–

–

Dimensions

Data sheet 50T3R1001-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-check
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

50T3R1001 Read More »

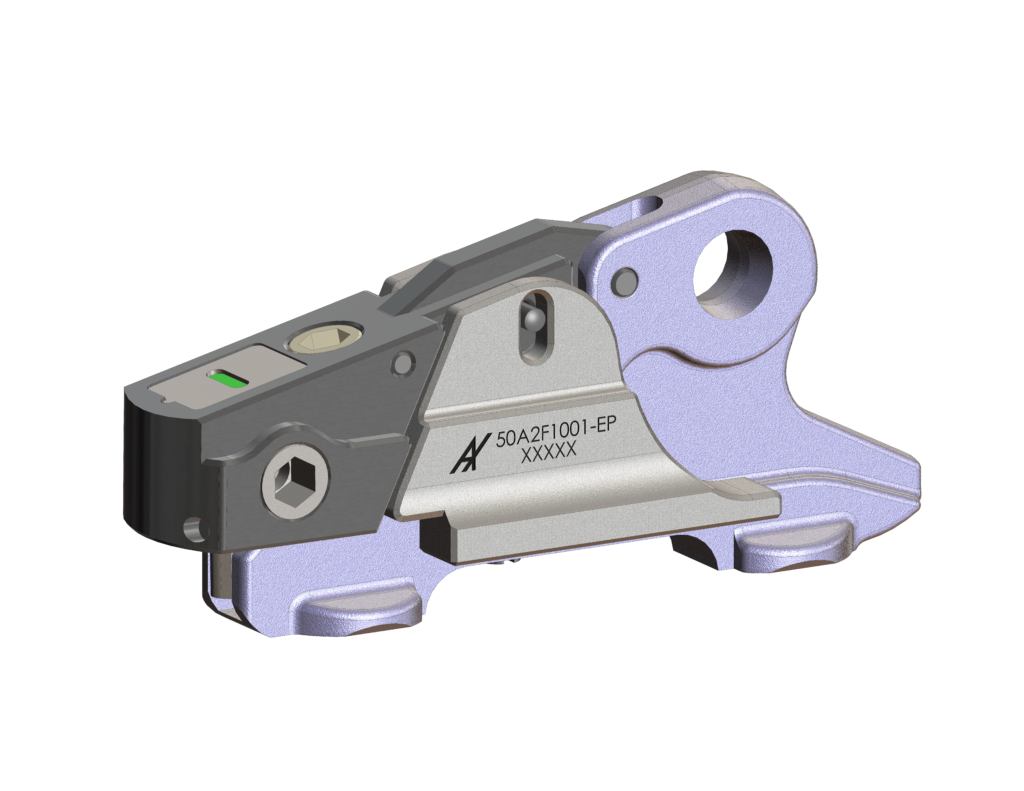

50A2F1001-EP-view type

50A 2F1 001

PDF
icone videopng-18
ICONES-prod-2
Front double stud fitting
ICONES-weight
159 grs
50A2F1001-EP-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Quick Change
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front) > 50 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-check

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Aluminum 7075-T651

Epoxy Primer

Lever

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-check
Green
_ICONES-check
Tool-less
_ICONES-check
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

50A2F1001 Read More »

50T3R1002-ZN-view type

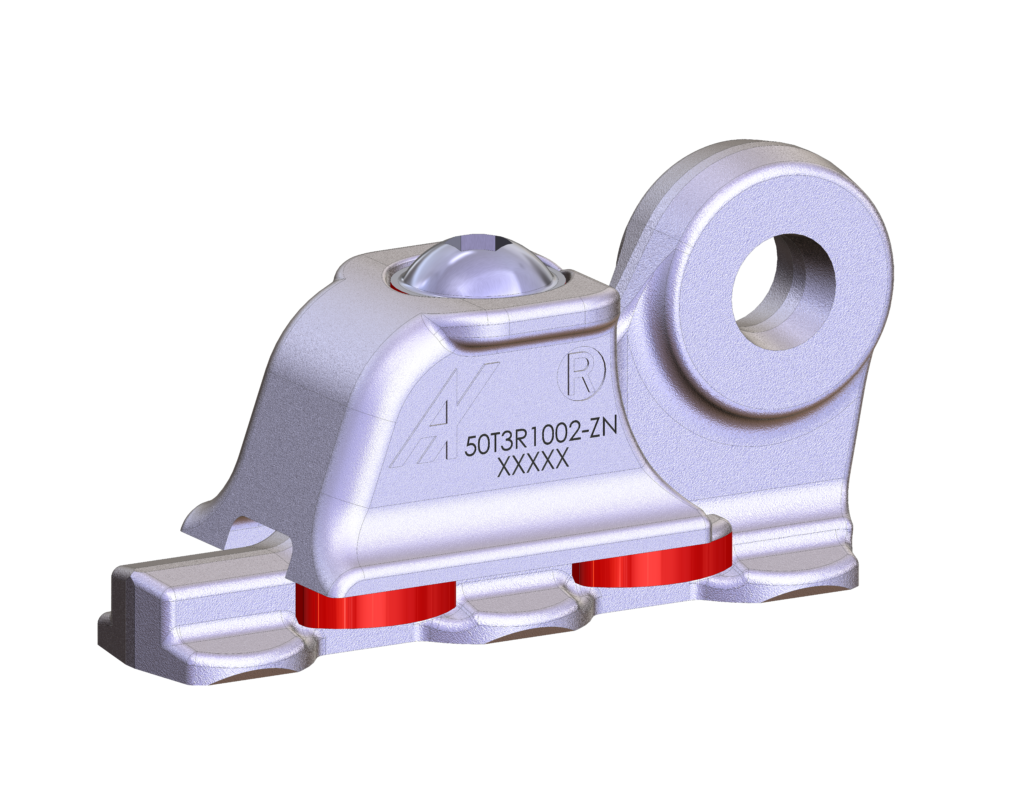

50T 3R1 002

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
144 grs
50T3R1002-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

–

–

Dimensions

Data sheet 50T3R1002-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-nocheck-vide
Offset
_ICONES-check
Captive screw

50T3R1002 Read More »

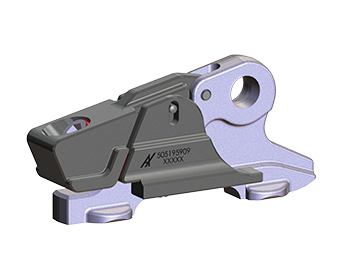

505195909_C-View type_edited350

505 195 909

PDF
icone videopng-18
ICONES-prod-2
Front double stud fitting
ICONES-weight
151 grs
505195909_C-View type_edited350

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front) > 50 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Lever

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

Data Sheet 505195909

Technical data

_ICONES-check
Safetyindicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

505195909 Read More »

505045909_C-view type

505 045 909

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
169 grs

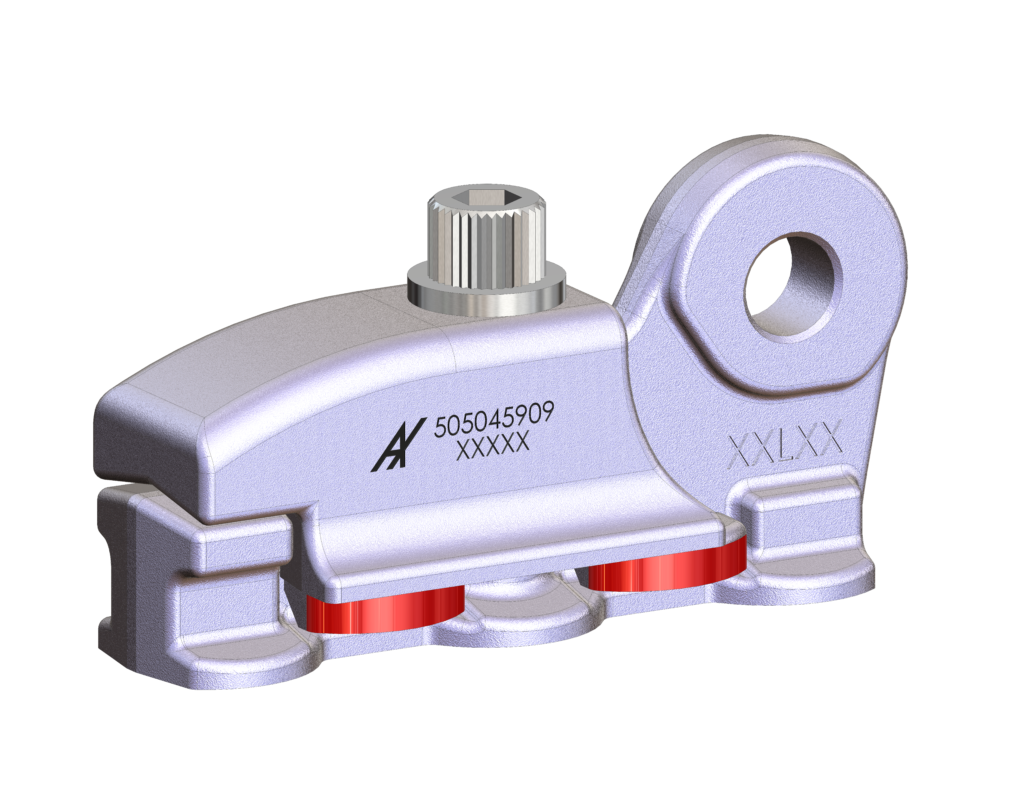

505045909_C-view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front) > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

– –

– –

Dimensions

Data Sheet 505045909
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-nocheck-vide
Offset
_ICONES-nocheck-vide
Captive screw

505045909 Read More »

Home – Company – products – download – videos – contact
ICONES-map

6 rue des Entrepreneurs
78420 Carrières-sur-Seine
France

ICONES-phone

T: +33 161 045 050
F: +33 161 040 501

Copyright © 2022 ATTAX – Design & Development by SYNTHES’3D | Legal Information
