Single and Double Studs

ICONES-prod-2
Single and Double studs
ICONES-weight
See table below
50T1F1001-ZN_view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             1
Shear Plunger                  No
Fz                                          > 18 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-check

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-check

B777

Components

Material

Treatment

Body

Steel 36CrNiMo 16 (35NCD16)

Zinc Nickel Type II Grade B per AMS 2417

Black Zinc Nickel Type II Grade B per AMS 2417

Lamellar Black Zinc plating

Dimensions

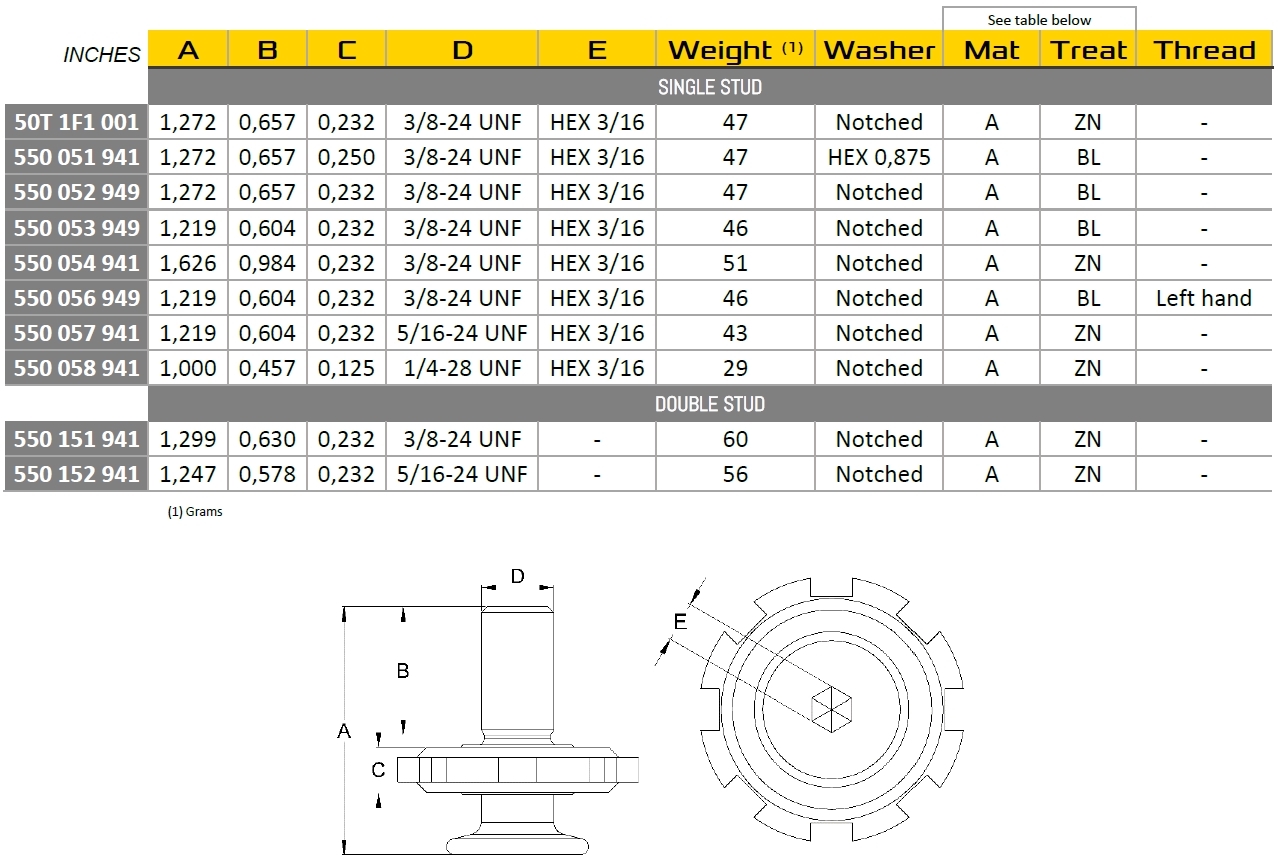

Data sheet Single stud
[ units in inch ]
