Single Move – 270°

E12284-V4_view_type

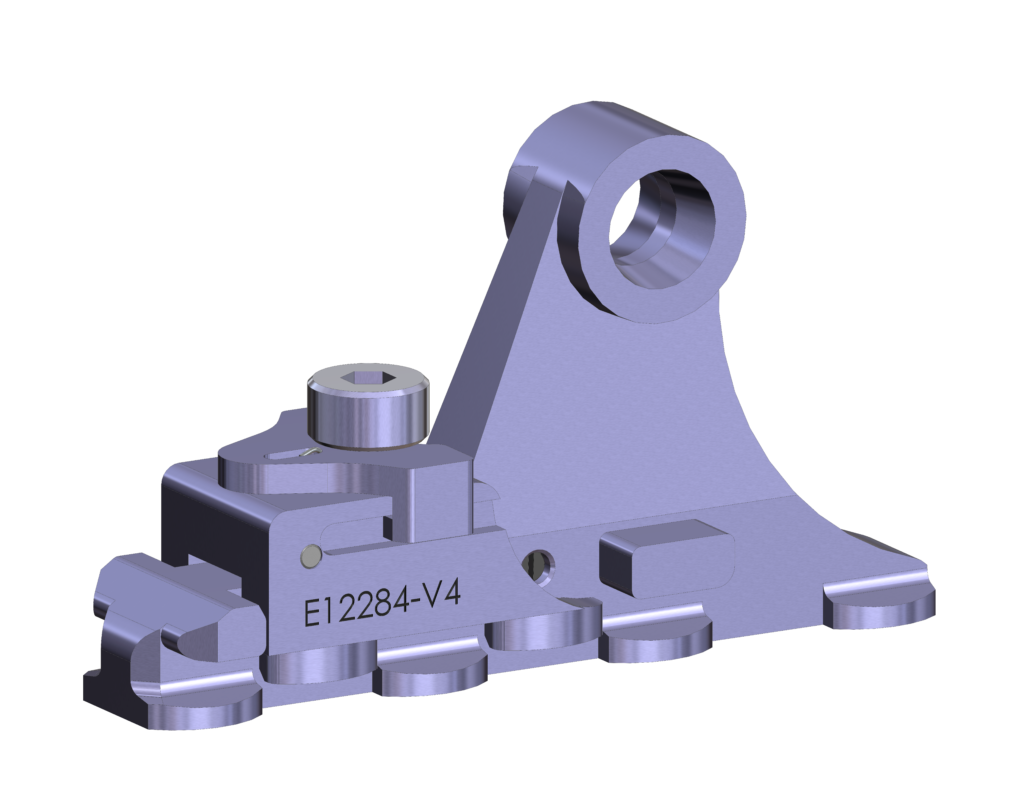

E12284-V4

ICONES-prod-2
Rear quadruple stud fitting
ICONES-weight
223 grs
E12284-V4_view_type

Features

ICONES-caracs

Characteristics

Fitting class                      Single Move
Number of studs             4
Shear Plunger                 Yes
Fxz (rear) or Fz (front) > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-check

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

Dimensions

Data Sheet E12284-V4
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-nocheck-vide
Offset
_ICONES-check
Captive screw

E12284-V4 Read More »

E12282-V4_view_type

E12282-V4

ICONES-prod-2
Rear triple stud fitting
ICONES-weight
191 grs
E12282-V4_view_type

Features

ICONES-caracs

Characteristics

Fitting class                      Single Move
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front) > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-check

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

Dimensions

Data Sheet E12282-V4
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-nocheck-vide
Offset
_ICONES-check
Captive screw

E12282-V4 Read More »

E12281-V4_view_type

E12281-V4

ICONES-prod-2
Rear triple stud fitting
ICONES-weight
168 grs
E12281-V4_view_type

Features

ICONES-caracs

Characteristics

Fitting class                      Single Move
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front) > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-check

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

Dimensions

Data Sheet E12281-V4
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

E12281-V4 Read More »
