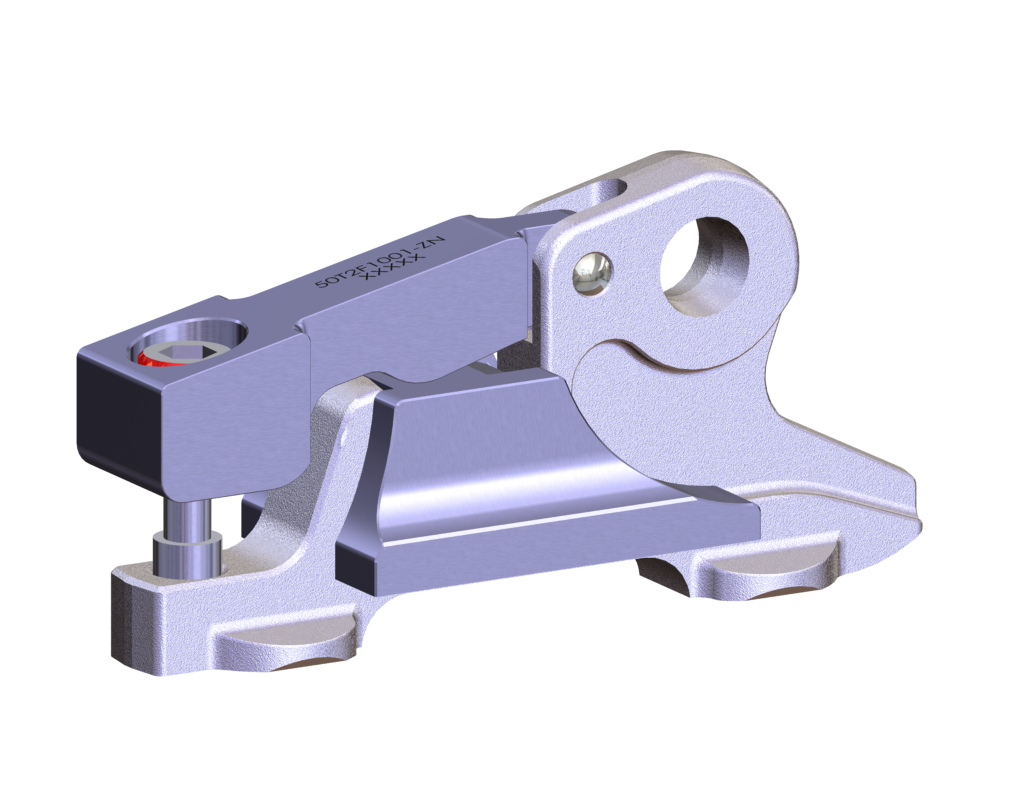

50T2F1001-ZN-view type

50T 2F1 001

ICONES-prod-2
Front double stud fitting
ICONES-weight
197 grs
50T2F1001-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front)     > 50 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Lever

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Dimensions

[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T2F1001 Read More »

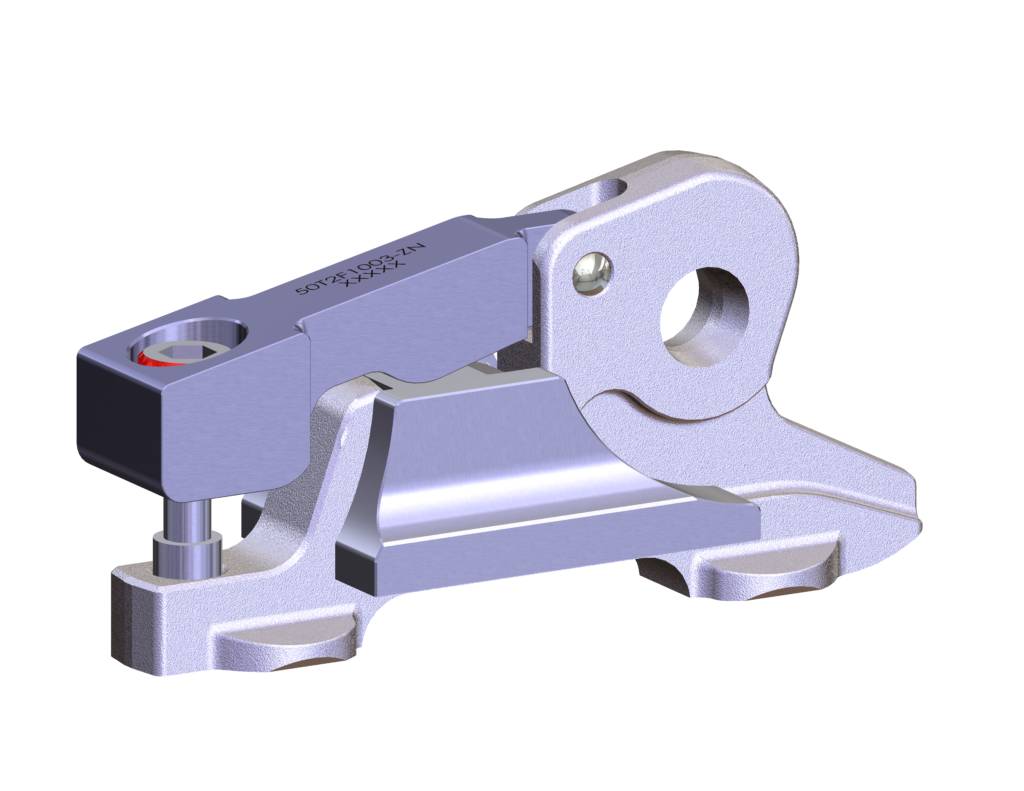

50T2F1003-ZN-view type

50T 2F1 003

ICONES-prod-2
Front double stud fitting
ICONES-weight
200 grs
50T2F1003-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front) > 50 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-check

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Lever

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Dimensions

Data sheet 50T2F1003-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T2F1003 Read More »

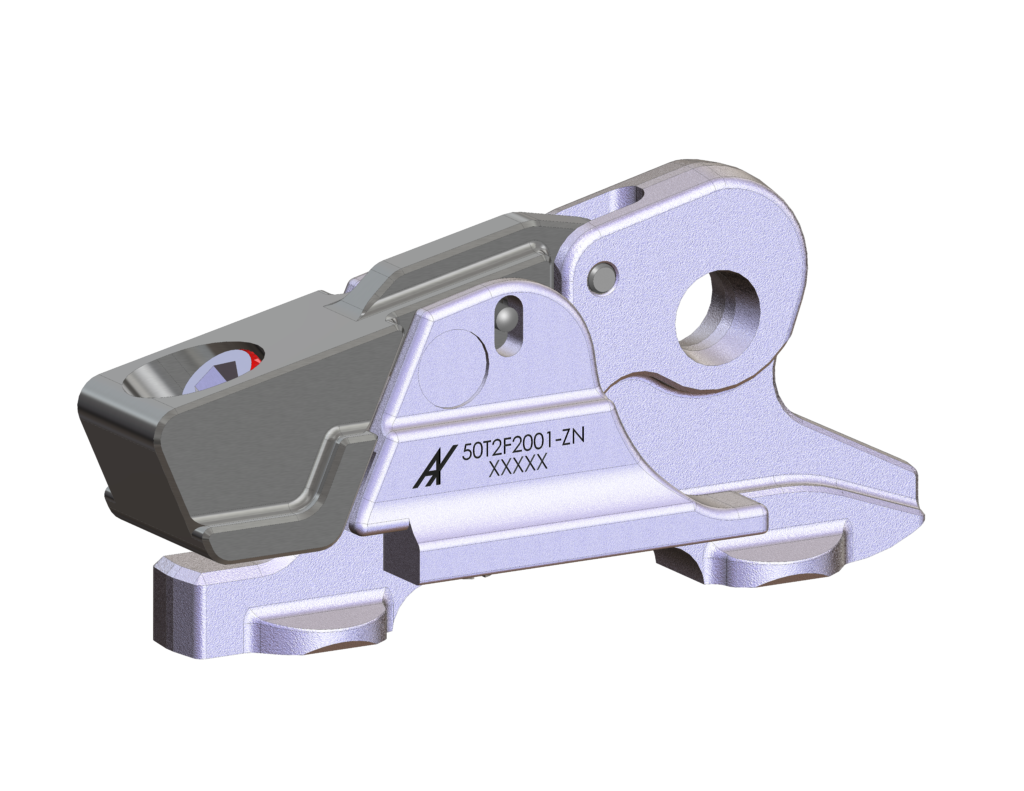

50T2F2001-ZN-view type

50T 2F2 001

ICONES-prod-2
Front double stud fitting
ICONES-weight
189 grs
50T2F2001-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front)    > 50 KN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-check

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Stainless steel 17-4 Ph per AMS 5355

Zinc Nickel Type II Grade B per AMS 2417

Lever

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

Data sheet 50T2F2001-ZN
[ units in inch ]

Technical data

_ICONES-check
Safetyindicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T2F2001 Read More »

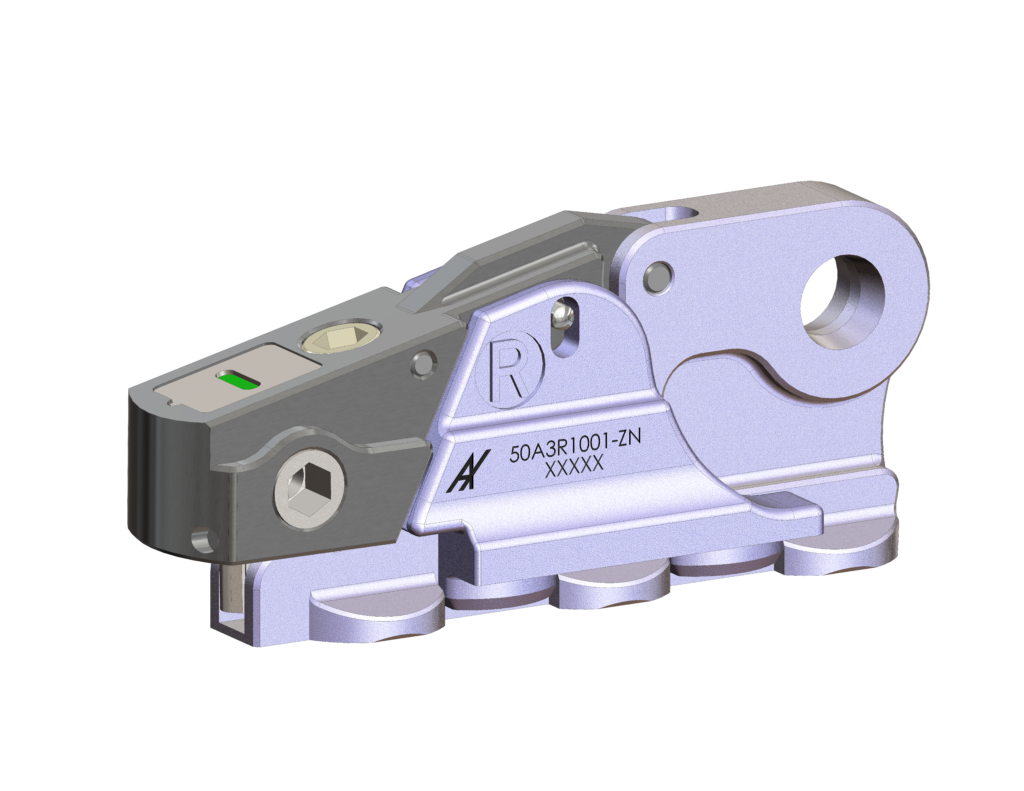

50A3R1001-ZN-view type

50A 3R1 001

ICONES-prod-2
Rear triple stud fitting
ICONES-weight
210 grs
50A3R1001-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Quick Change
Number of studs              3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > 75 KN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
Dornier
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B777

_ICONES-check

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Stainless steel 17-4 Ph per AMS 5355

Zinc Nickel Type II Grade B per AMS 2417

Lever

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

_ICONES-check

Dimensions

Data sheet 50A3R1001-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-check
Green
_ICONES-check
Tool-less
_ICONES-check
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

50A3R1001 Read More »

505195909_C-View type_edited350

50T 2F2 002

ICONES-prod-2
Front double stud fitting
ICONES-weight
151 grs
50T2F2002-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front) > 50 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Lever

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

Data Sheet 505195909

Technical data

_ICONES-check
Safetyindicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T2F2002 Read More »

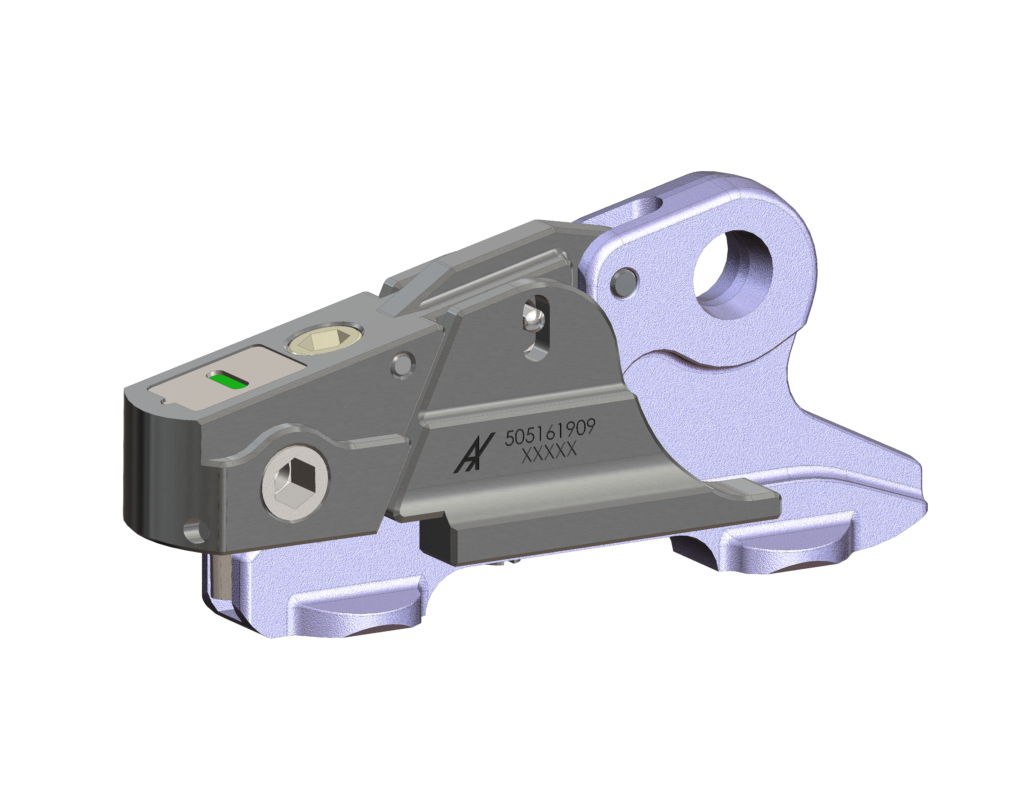

505161909-view type

505 161 909

ICONES-prod-2
Front double stud fitting
ICONES-weight
159 grs
505161909-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Quick Change
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front) > 50 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Lever

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

Data Sheet 505161909
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-check
Green
_ICONES-check
Tool-less
_ICONES-check
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

505161909 Read More »

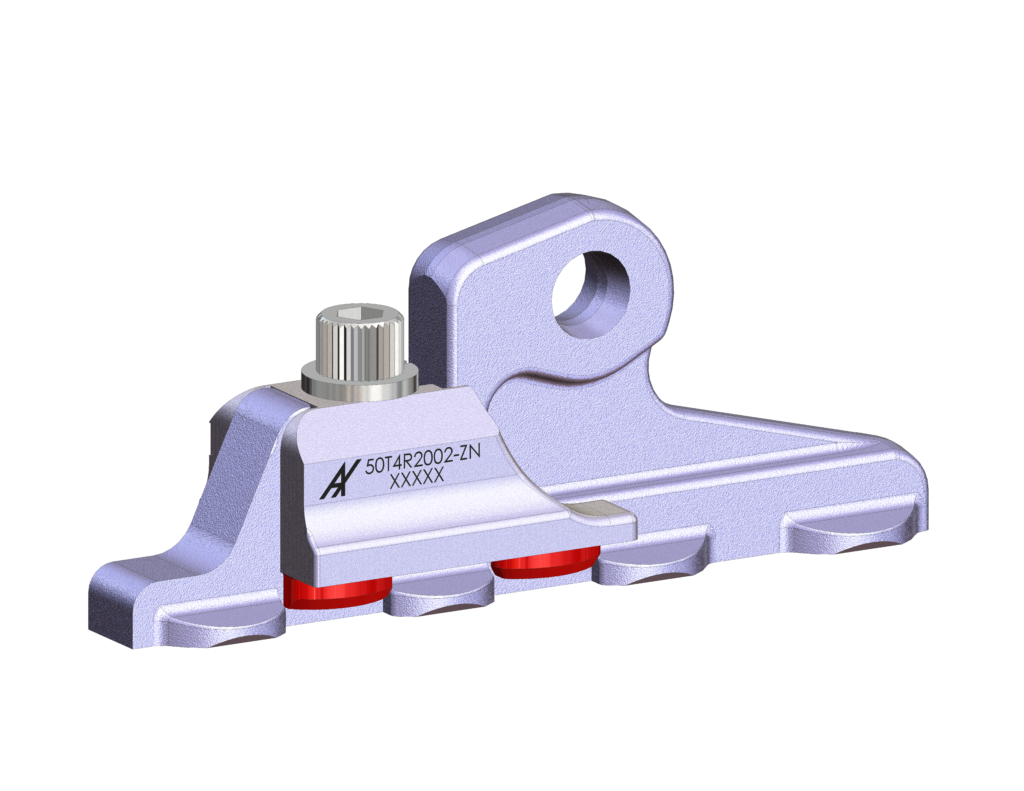

50T4R2002-ZN-view type

50T 4R2 002

ICONES-prod-2
Rear quadruple stud fitting
ICONES-weight
191 grs
50T4R2002-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             4
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > 75 KN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
Bombardier
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B777

_ICONES-check

Q400

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Stainless steel 17-4 Ph per AMS 5355

Zinc Nickel Type II Grade B per AMS 2417

Lever

Dimensions

Data sheet 50T4R2002-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

50T4R2002 Read More »

50T4R2001-ZN_view type

50T 4R2 001

ICONES-prod-2
Rear quadruple stud fitting
ICONES-weight
223 grs
50T4R2001-ZN_view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             4
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > 75 KN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
Bombardier
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B777

_ICONES-check

Q400

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Stainless steel 17-4 Ph per AMS 5355

Zinc Nickel Type II Grade B per AMS 2417

Lever

Aluminium 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

Data sheet 50T4R2001-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T4R2001 Read More »

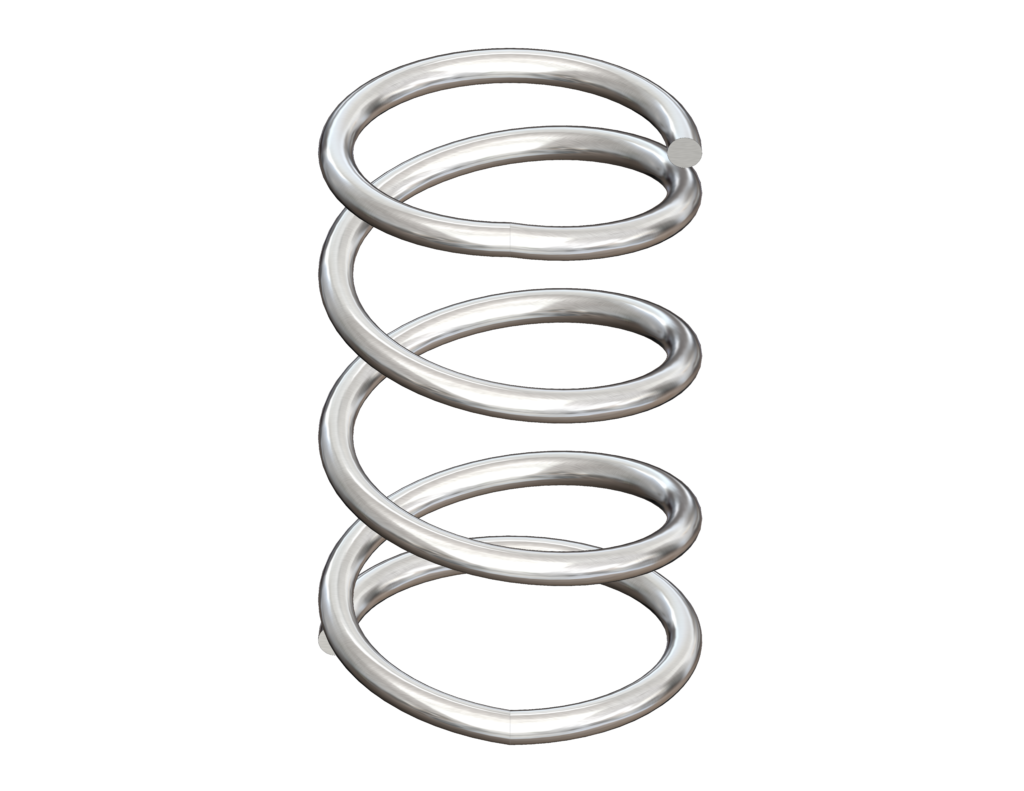

Compression_Spring

Compression Springs

ICONES-prod-2
Compression Springs
ICONES-weight
1,3 grs
Compression_Spring

Main Features

Technical data

Possible close turns
Ground Extremity

Characteristics

Material

Treatments

Steel

B1 – C1 – D1

Lamellar zinc or zinc nickel

Stainless teel

302

Dimensions

Data_sheet_Compression_Springs

Compression Springs Read More »

Tensile_Spring

Tensile Springs

ICONES-prod-2
Tensile Springs
ICONES-weight
1,3 grs
Tensile_Spring

Characteristics

Material

Treatments

Steel

B1 – C1 – D1

Lamellar zinc or zinc nickel

Stainless teel

302

Dimensions

Data_sheet_Tensile_Springs

Tensile Springs Read More »
